Industrial Heavy Weighbridge Solutions
Engineered with 4-girder high-tensile steel, hermetically sealed IP68 load cells, and certified Legal Metrology accuracy for relentless 24/7 service.
Pit Type Weighbridge
Darshan Pit Type Weighbridges are engineered for industrial environments where yard space is at a premium. Because the weighing deck is completely flush with the surrounding ground level, vehicles can approach from any direction and cross over smoothly without the need for elevated approach ramps. Fabricated with heavy-duty wide-flanged structural steel beams, it delivers extreme rigidity and accurate weight capture under heavy cyclical axle loading.
Pitless & Semi-Pitless Weighbridge
Darshan Pitless and Semi-Pitless Weighbridges are surface-mounted weighbridges designed for swift commissioning, cost-effective civil work, and effortless ongoing maintenance. Since the entire deck structure and load cells are elevated above ground level, there are zero water logging or pit drainage problems. Structural steel ramps provide smooth vehicle ingress and egress, making it the most popular choice for general industrial and highway toll sites.
Modular Weighbridge
Conventional weighbridges rely on just 2 main longitudinal beams, which are prone to excessive deflection and cyclic bolt fatigue. The Darshan Modular Weighbridge features an advanced 4-longitudinal girder layout seamlessly welded into high-integrity modules. Modules can be transported on standard trucks, bolted together with high-tensile hardware on-site, and expanded in length whenever future truck lengths increase.
Mobile Weighbridge
The Darshan Mobile Weighbridge is designed specifically for temporary project sites, road construction contracts, seasonal harvesting depots, and quarrying operations where permanent civil foundations are impractical or cost-prohibitive. Complete with an integral bottom steel base frame and foldable steel ramps, it requires no permanent civil foundation—only a flat, compacted hard-standing surface. It can be installed, calibrated, and operational within hours.
Fully Electronic Weighbridge Systems
Darshan Fully Electronic Weighbridges represent the pinnacle of modern weighing automation. Incorporating Government of India approved digital indicators, hermetically sealed IP68 load cells, microprocessor digitizers, and proprietary Truck Position Sensors (TPS), our electronic weighbridges deliver unmatched repeatability and fraud-resistant operation across over 500 industrial installations nationwide.
Weighbridge Accessories & Instrumentation
Darshan manufactures and supplies a comprehensive suite of rugged instrumentation and accessories to transform any weighbridge into a fully automated, unattended, or enterprise-connected weighing hub. All accessories are built for harsh industrial environments with surge-protected circuitry and intuitive operator interfaces.
Weighbridge Configuration Comparison Matrix
Evaluate which structural configuration aligns precisely with your site footprint, soil conditions, civil budget, and vehicle traffic.
| Engineering Factor | Pit Type | Pitless | Modular 4-Girder | Mobile Scale |
|---|---|---|---|---|
| Civil Work Required | Full concrete pit (approx 1.2-1.5m deep) | Surface RCC foundation + short approach ramps | Surface or shallow pit configuration | Zero foundation; firm leveled ground bed |
| Land Space Needed | Minimum (no ramps, flush to ground) | Moderate (requires ramp length at both ends) | Moderate to compact depending on pit style | Compact; includes integral steel ramps |
| Drainage & Water Slush | Requires sump pump / drain connection | Zero drainage hassle; entirely above ground | Seamless welded modules prevent mud ingress | Above ground; zero drainage issues |
| Load Cell Maintenance | Via deck manhole access covers | Direct daylight access from open sides | Easily accessible free-floating rocker pins | Direct surface access on bottom frame |
| Mobility & Relocation | Permanent installation | Can be relocated by dismantling modules | Highly relocatable via standard truck freight | Swiftly relocatable within 1 day |
| Best Suited For | Restricted space, turning yards, steel mills | Industrial factories, APMC, toll plazas | High-cyclic 24/7 heavy commercial traffic | Road construction, seasonal sugar/grain sites |
Weighbridge Peripherals, Electronics & Software
Manufactured with industrial-grade microprocessors and heavy enclosures to withstand dust, vibration, and lightning surges.
Alpha Numeric Intelligent Terminal
Dedicated microprocessor terminal with full alphanumeric keyboard, internal transaction memory, and direct printer interfacing without requiring a computer.
Super Intelligent Terminal System
Advanced industrial terminal with multi-line backlit LCD display, programmable weighing ticket formats, and tamper-resistant transaction logging.
High Precision Digital Weight Indicator
Government approved high-resolution digital indicator featuring ultra-fast analog-to-digital conversion, auto zero-tracking, and dual serial ports.
Jumbo Remote Display
Heavy-duty outdoor weather-resistant remote display with bright 4-inch / 6-inch red LED digits, visible from over 75 meters in direct sunlight.

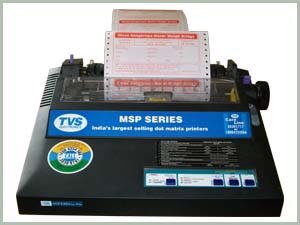

Heavy-Duty Ticket Printer (TVS MSP 240)
Industry-standard dot matrix printer for reliable 3-part carbonized weighment slip printing in dusty industrial environments.
Computerised Weighbridge Software
Comprehensive weighing management suite with operator login permissions, vehicle photo capture integration, and export to Excel/ERP/SAP.
Conversion Super Intelligent Terminal
Retrofit digitization kit engineered to convert outdated mechanical or lever weighbridges into modern high-speed electronic systems.

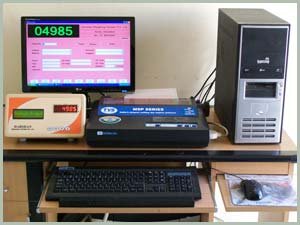

Electronic Computer Systems
Industrial-grade desktop workstation bundled with Darshan weighbridge software, thermal backup power, and pre-configured hardware interfaces.
