Heavy-Duty Industrial Weighbridges Built for Uncompromising Precision
Engineered with advanced 4-girder high-tensile steel structures, hermetically sealed IP68 digital load cells, and proprietary Truck Position Sensors (TPS). Trusted across 500+ heavy industrial installations nationwide.
Industrial Weighbridge Systems
Heavy-capacity vehicle scales designed for relentless industrial duty, certified Legal Metrology accuracy, and zero downtime.

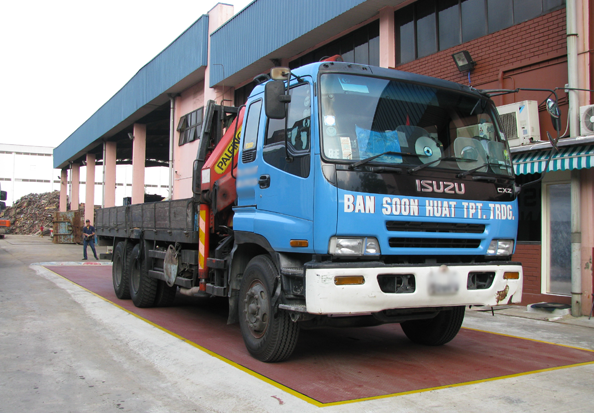

Pit Type Weighbridge
Flush-to-Ground Surface Weighing System Ideal for Space-Constrained Facilities
Darshan Pit Type Weighbridges are engineered for industrial environments where yard space is at a premium. Because the weighing deck is completely flush with the surrounding ground level, vehicles can approach from any direction and cross over smoothly without the need for elevated approach ramps. Fabricated with heavy-duty wide-flanged structural steel beams, it delivers extreme rigidity and accurate weight capture under heavy cyclical axle loading.
Pitless & Semi-Pitless Weighbridge
Surface-Mounted High-Efficiency Weighbridge with Minimum Civil Work & Zero Drainage Hassles
Darshan Pitless and Semi-Pitless Weighbridges are surface-mounted weighbridges designed for swift commissioning, cost-effective civil work, and effortless ongoing maintenance. Since the entire deck structure and load cells are elevated above ground level, there are zero water logging or pit drainage problems. Structural steel ramps provide smooth vehicle ingress and egress, making it the most popular choice for general industrial and highway toll sites.

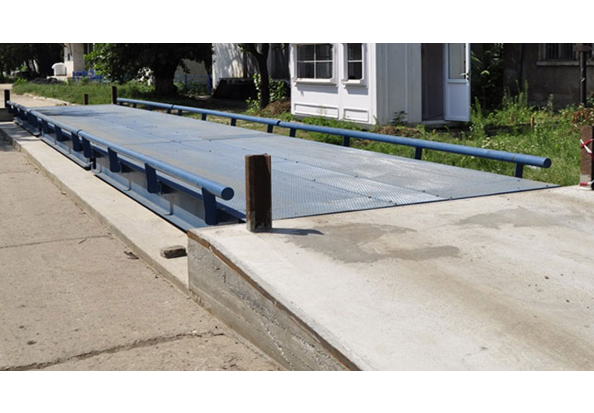

Modular Weighbridge
Advanced 4-Girder Fully Welded Modular Design Engineered for Heavy Cyclic Loading
Conventional weighbridges rely on just 2 main longitudinal beams, which are prone to excessive deflection and cyclic bolt fatigue. The Darshan Modular Weighbridge features an advanced 4-longitudinal girder layout seamlessly welded into high-integrity modules. Modules can be transported on standard trucks, bolted together with high-tensile hardware on-site, and expanded in length whenever future truck lengths increase.
Mobile Weighbridge
Self-Contained Foundationless Weighbridge with Integral Steel Frame & Foldable Ramps
The Darshan Mobile Weighbridge is designed specifically for temporary project sites, road construction contracts, seasonal harvesting depots, and quarrying operations where permanent civil foundations are impractical or cost-prohibitive. Complete with an integral bottom steel base frame and foldable steel ramps, it requires no permanent civil foundation—only a flat, compacted hard-standing surface. It can be installed, calibrated, and operational within hours.
Fully Electronic Weighbridge Systems
Complete State-of-the-Art Electronic Instrumentation & Digital Load Cell Systems
Darshan Fully Electronic Weighbridges represent the pinnacle of modern weighing automation. Incorporating Government of India approved digital indicators, hermetically sealed IP68 load cells, microprocessor digitizers, and proprietary Truck Position Sensors (TPS), our electronic weighbridges deliver unmatched repeatability and fraud-resistant operation across over 500 industrial installations nationwide.
Weighbridge Accessories & Instrumentation
Intelligent Terminals, Digital Indicators, TPS Sensors, Jumbo Displays & Heavy Printers
Darshan manufactures and supplies a comprehensive suite of rugged instrumentation and accessories to transform any weighbridge into a fully automated, unattended, or enterprise-connected weighing hub. All accessories are built for harsh industrial environments with surge-protected circuitry and intuitive operator interfaces.
Western India's Foremost Industrial Weighbridge Engineering Company
Darshan Weighing Systems Pvt. Ltd. (DWS) is one of the fastest growing industrial weighing enterprises in Western India. We manufacture heavy mechanical weighbridges, precision electronic systems, and metrological instrumentation under one single roof, complying with stringent national and international quality benchmarks.
Operating our primary manufacturing facility at Naroda G.I.D.C., Phase-3, Ahmedabad, Gujarat, our facility is equipped with a heavy-duty mechanical fabrication shop, an advanced Electronic R&D unit, and a full-fledged Quality Assurance department.
Why Leading Industrial Enterprises Choose Darshan
Built with uncompromising structural integrity and verified electronic accuracy, our weighbridges are engineered to outlast decades of demanding high-volume cycles.
4 Longitudinal Girders Structure
Conventional weighbridges use only 2 main longitudinal beams, leading to platform deflection and cyclic metal fatigue. Darshan utilizes 4 heavy longitudinal girders with transverse diaphragms, delivering extraordinary stiffness and even weight distribution under maximum axle loads.
Shock-Absorbing Rocker Assembly
Our proprietary cradle mounting assembly (Bottom Plate, Rocker Assembly & Top Bracket) allows free-floating movement in the horizontal axis. It absorbs violent deceleration forces caused by moving trucks, isolating load cells and sustaining calibration accuracy.
Truck Position Sensor (TPS)
A unique photo-electric sensor system that verifies whether a vehicle is positioned completely within the deck perimeter. If any tire overhangs or straddles the edge to manipulate tare/gross weights, the system strictly halts weighment.
Low-Resistance Shielded Cabling
Millivolt signals from load cells are transmitted through heavy 4-core shielded low-resistance cables. All connections terminate in fully molded weatherproof IP67 junction boxes equipped with heavy gas discharge tubes and surge arrestors.
Seamlessly Welded Sealed Modules
Pre-fabricated modules are continuously welded with submerged-arc technology. No rainwater, slush, or road debris can enter the under-chassis. Eliminates the loose transoms and worn fastener issues common in conventional bolted weighbridges.
In-House Civil Guidance & Commissioning
Led by civil engineering leadership, Darshan supplies certified civil foundation blueprints, site soil inspection guidelines, and deploys our own dedicated commissioning engineers to oversee calibration, stamping, and handover.
Configure Your Weighbridge Solution
Select your structural type, target tonnage, and vehicle length to receive complete civil drawings and commercial pricing.
Specification Summary
Manufacturing, R&D, and QA Under One Roof
At our Naroda GIDC complex in Ahmedabad, every weighbridge undergoes meticulous end-to-end fabrication, laser calibration, and metrological inspection.
Heavy Mechanical Workshop
Equipped with automatic profile gas-cutting machines, heavy shot-blasting, hydraulic press brakes, and submerged arc continuous welding jigs for flawless girder alignment.
- • High-tensile IS:2062 Grade-E steel
- • Anti-corrosive multi-coat epoxy primer
- • Calibrated robotic welding lines
Electronic R&D Unit
Staffed by qualified electronics engineers specializing in microprocessors, digital load cell interfaces, transient surge suppression, and Truck Position Sensors (TPS).
- • Precision component pre-testing
- • Hermetic IP68 environmental chambers
- • SAP / ERP data integration firmware
Full Quality Assurance Dept.
Before any weighbridge departs our Naroda factory, full deflection tests, corner load calibration, and Legal Metrology stamping protocols are conducted.
- • OIML Class III compliance
- • 150% full capacity stress loading
- • Certified calibration test reports
Tailored Weighing Systems for Heavy Sectors
Every industry presents unique environmental stresses, axle weights, and throughput cycles. We engineer weighbridges configured specifically for your plant workflow.
Steel Mills & Heavy Foundries
Engineered to withstand extreme cyclic shock loads from scrap iron trucks, billets, coils, and heavy metallurgical transport.
Mining, Coal & Stone Quarries
Robust anti-abrasive chequered decks designed for heavy dumper trucks operating in harsh abrasive dust and muddy terrain.
Cement & Ready-Mix (RMC) Units
High-throughput continuous dispatch weighing for bulk cement tankers and aggregate tippers with fast stabilization digitizers.
Logistics, Freight & Container Yards
Multi-axle commercial container weighment with Truck Position Sensors (TPS) and ERP automation for high-speed logistics gates.
Agriculture, Sugar Mills & APMC
High-volume seasonal sugarcane, grain, and cotton weighment with rapid ticket printing and farmer receipt generation.
Chemical, Fertilizer & Process Plants
Hermetically sealed IP68 stainless steel load cells and corrosion-resistant epoxy coatings for corrosive chemical haulers.
Intelligent Terminals, Sensors & Peripherals
Upgrade any weighbridge with our standalone intelligent terminals, Truck Position Sensors, and industrial management software.
Alpha Numeric Intelligent Terminal
Dedicated microprocessor terminal with full alphanumeric keyboard, internal transaction memory, and direct printer interfacing without requiring a computer.
Super Intelligent Terminal System
Advanced industrial terminal with multi-line backlit LCD display, programmable weighing ticket formats, and tamper-resistant transaction logging.
High Precision Digital Weight Indicator
Government approved high-resolution digital indicator featuring ultra-fast analog-to-digital conversion, auto zero-tracking, and dual serial ports.
Jumbo Remote Display
Heavy-duty outdoor weather-resistant remote display with bright 4-inch / 6-inch red LED digits, visible from over 75 meters in direct sunlight.
Operational Installation Gallery
Browse real high-tonnage weighbridge installations operating across steel plants, logistics hubs, cement dispatchers, and quarries.
100 MT Pitless Heavy Vehicle Weighbridge
18m x 3m Modular Steel Deck Installation
Heavy-Duty Pit Type Weighbridge Station
Discuss Your Weighing Project with Our Senior Engineers
Whether you need a new 100 MT weighbridge for a high-traffic logistics plant or an upgrade of an existing lever scale to a modern electronic digital system, our technical team is ready to assist.
